Up to 1.3M IOPS and 5,500 Mbps throughput

High IOPS ideal for database and VDI applications, while massive bandwidth enhances media editing and surveying jobs

Dual controllers and redundant power supplies

Fast failover performance and high data availability

Scalability

Expand storage to 2,016TB using a total 336 drives via JBOD enclosures

Hybrid host interface with optional onboard iSCSI

Combine diverse connectivity environments on one system for greater utility

Multiple host interface options

Choose 8Gb/s or 16Gb/s Fibre Channel, 1Gb/s or 10Gb/s iSCSI, or 6Gb/s or 12Gb/s SAS based on your needs and budget

Tiered event messages

Clear and easily actionable system notifications keep you informed and in control

Smart media scan

Works in the background to enhance data integrity and prevent corruption

Thin provisioning

Improve storage utilization up to 80% - get more for your investment

Multi-target snapshot

With up to 4096 targets, always have backups to recover vital data at different points in time

Multi-pair volume copy/mirror

Up to 64 pairs ensure entire volumes can be backed up with minimal effort as data grows

SANWatch 3.0 interface

User friendly browser-based deployment and management

Intelligent drive spin-down and 80 PLUS power supplies

Lower costs through reduced power draw and longer drive lifespan

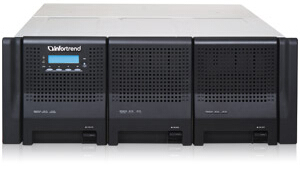

High Density

Accommodates 48 drives in a single 4U chassis with a convenient 3-drawer design

• Onboard Gb/s ports
  • Four 1Gb/s iSCSI ports (2 per controller)
• More host options:
  • Four 16Gb/s Fibre Channel ports (2 per controller)
  • Eight 8Gb/s Fibre Channel ports (4 per controller)
  • Four 10Gb/s iSCSi ports/ SFP+ or RJ-45 (2 per controller)
  • Eight 1Gb/s iSCSI ports (4 per controller)
  • Four 12Gb/s SAS ports (2 per controller)
  • Four 6Gb/s SAS ports (2 per controller)

Dual redundant controllers

Default 4GB (2x2GB), up to 8GB (4x2GB), 16GB (4x4GB) or 32GB (4x8GB)

** Default installed memory may vary by model, region, and other factors. Contact our sales representatives for details.

• 6Gb/s SAS connectivity
• S.M.A.R.T. support
• Automatic bad-sector reassignment
• Dedicated bandwidth to each connected drive

3.5” 7,200 RPM 6Gb/s Nearline SAS drives - 1TB , 2TB, 3TB, 4TB, 6TB

** For the latest compatibility details, please contact our sales representatives

• Per system: 48
• Via JBOD: 336

Please refer to Related Information

4U

• Global, delicated or enclosure hot-spare
• RAID levels supported : RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
• Online expansion by:
  • Adding new drives
  • Copying and replacing drives with drives of larger capacity
• RAID migration
• Configurable stripe size and write policy per system
• Intelligent drive handling
  • In degraded mode: skips irreparable blocks to continue rebuild
  • In normal operation: data-block verification and repair

• Thin provisioning
• SED (Self-encrypting drives)
• Automated storage tiering*
• Local replication **
  • Snapshot
  • Volume copy/ mirror
• Remote replication*
  • Synchronous or asynchronous

* Optional
** Available with Standard license and optional Advanced license

• High-efficiency power supplies
• Intelligent multi-level drive spin-down

• Redundant, hot-swappable hardware modules
• CacheSafe technology
• Multi-pathing support (EonPath)
• Device mapper support

Various event notification methods including email, LAN broadcast, fax, SNMP traps, SMS, and Skype.

• Web-based SANWatch management software
• RS232 serial port for local access to firmware-embedded utility
• Automated cache flush and caching mode operation per enclosure status
• Telnet and SSH system monitoring via Ethernet
• Platform-independent firmware management GUI
• LCD keypad panel for monitoring and access to all configuration options
• Module status LED indicators: component presence detection & thermal sensors via I2C bus

• Windows Server 2003
• Windows Server 2008, 2008 R2 (including Hyper-V)
• RedHat Enterprise Linux
• SUSE Linux Enterprise
• Sun Solaris
• Mac OS X
• VMware
• Citrix
• IBM AIX
• HP-UX

** For the latest OS support details, please contact our sales representatives.

• Standard service: 3-year limited harware/software warranty and 8x5 phone, web, and email support
• ​Upgrade/Extension service*: replacement part dispatch on the next business day (up to 5 years)
  • Advanced Service: 24x7 phone, web and email support + onsite diagnostics on the next business day
  • ​Premium Service: 24x7 phone, web and email support + onsite diagnostics in 4 hours

* Optional
** Service may vary by region

• Power supplies: Three 530W
• AC voltage: 100VAC @ 10A to 240VAC @ 5A with PFC (auto-switching)
• Frequency: 47-63 Hz

• Temperature: 0 to 35°C operating/ -40 to 60°C non-operating
• Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating
• Relative humidity: 5 to 95% non-condensing, operating and non-operating

446mm (W) x 176mm (H) x 874mm (D)
**Without chassis ears / protrusions

68.4kg/ 150.80lbs (without HDDs)

630mm (W) x 426mm (H) x 1150mm (D) including paper pallet
630mm (W) x 670mm (H) x 1150mm (D) including HDD packages
