DELL Precision T1700
- 产品概述
- 规格参数
- 相关案例
强大的性能
无论是构建2D或3D模型,还是使用高要求应用程序进行多任务处理,Dell Precision T1700工作站均能帮助您轻松处理密集型任务。
英特尔®至强™处理器 E3-1200 v3或第四代英特尔®酷睿™处理器可实现快速、稳定的处理。
选择Windows 7 专业版或Windows 8 专业版,让工作变得无比轻松。
强大的显卡选项包括AMD FirePro™或NVIDIA® Quadro®专业级独立显卡。标配集成英特尔®显卡。
Dell Precision Optimizer 可帮助您的专业软件自动以最高性能运行。
precision t1700 workstation-Built to be dependable
Built to be dependable
The Dell Precision T1700 has undergone extensive testing to ensure strong performance now and into the future.
Optional Dell Data Protection | Security Tools and optional Dell Data Protection | Encryption help make Dell Precision T1700 a secure entry-level Workstation.
Optional mirrored RAID provides redundancy and fast recovery in the event of a drive failure.
Up to 32GB1 of optional error-correcting code (ECC) memory corrects isolated soft-memory errors and provides a solid foundation for memory and system stability.
Available self-encrypting drives (SEDs) can reduce security risks and unauthorized access to your data.
Dell services, including Dell ProSupport,2 can help you protect your hardware investment through a customizable suite of support options.
precision t1700 workstation - Smart design, now in two sizes
Smart design, now in two sizes

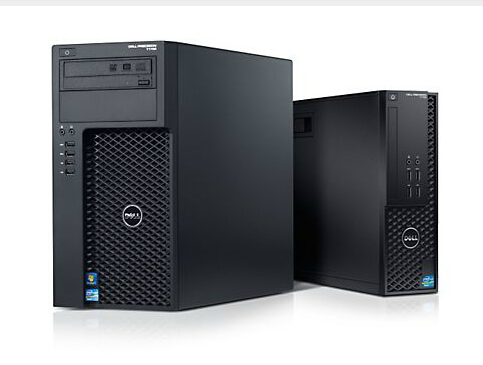

The Dell Precision T1700 is available in two sizes: a compact mini tower and one of the industry’s most compact small form factor (SFF) designs.
The smallest Workstation in its class allows you to bring powerful performance to small spaces.
Two front-mounted USB 3.0 ports enable fast data transfers and easy connectivity to your external media and accessories.
ENERGY STAR 5.2 qualification makes the Dell Precision T1700 an energy-efficient part of your IT ecosystem.
A conveniently placed handhold helps you deploy and position your Workstation with minimal hassle.
precision t1700 workstation - ISV certified
ISV certified
The Dell Precision T1700 is a true Workstation that’s compatible with leading independent software vendor (ISV)-certified applications for maximum uptime and productivity.
An expanded set of ISV-certified applications ensures guaranteed software compatibility with your system and peak performance of your applications.
Popular ISV-certified applications include AutoCAD, SolidWorks and Creo.
Triple monitor support comes standard. Optional quad monitor support can enable even greater productivity.
precision t1700 workstation - Global services and support
Global services and support
Dell Services can help reduce IT complexity and lower costs by making IT and business solutions work harder for you. The Dell Services team can design a complete solution for your environment and business objectives.
precision t1700 workstation - Accessories
Accessories
Essential Dell accessories help you get the most out of your Dell Precision T1700. The Dell U2413 UltraSharp monitor is perfect for color-critical work. Mount a second monitor to the Dell MDS14 Dual Monitor Stand for a clutter-free workspace and dual-monitor productivity.
处理器选项Help Me Choose
英特尔® Core™ i7 (4790)
英特尔® 至强®四核 (E3-1246, E3-1241, E3-1226)
操作系统选项Help Me Choose
Ubuntu Linux 12.04
NeoKylin 操作系统
Windows® 7 专业版 64 位 (英文)
Windows® 7 专业版 64 位 (简体中文)
Windows 8.1 Pro (64位) 英文
Windows 8.1 Pro (64位) 简体中文
芯片组选项
英特尔®C2261
内存选项3Help Me Choose
8GB (2x4GB) 1600MHz DDR3 非-ECC
16GB (4x4GB) 1600MHz DDR3 非-ECC
4GB (2x2GB) 1600MHz DDR3 非-ECC
显卡选项
微塔式机: 小型机:
显卡 一个PCI Express® x16第3代显卡,总功率最高150 W(一些显卡支持双配置):
一个半高PCI Express® x16第3代显卡,总功率最高50 W:
中端3D
AMD FirePro W5000 是 否
NVIDIA® Quadro® K4000 是 否
NVIDIA Quadro K2000 是 否
入门级3D
AMD FirePro V4900 是 否
AMD FirePro V3900 是 否
NVIDIA Quadro K600 是 是
专业级2D(未经ISV认证)
AMD FirePro 2270 是 是
英特尔核芯显卡P4600/46004 是 是
NVIDIA Quadro NVS™ 510 是 是
NVIDIA Quadro NVS 410 否 是
NVIDIA Quadro NVS 310 是 否
硬盘选项Help Me Choose
最高1000 GB SATA硬盘 (7200RPM)
网络控制器
集成:
集成英特尔82579千兆位以太网控制器,支持远程唤醒、PXE和巨型帧
可选:
Broadcom NetXtreme 10/100/1000千兆位以太网控制器(PCI Express卡)
声卡选项
集成Realtek ALC269Q高保真音频
机箱包含项
Dell Precision T1700微塔式机(MT) Dell Precision T1700小型机(SFF)
高 x 宽 x 深:14.17英寸 x 6.89英寸 x 17.13英寸/360毫米 x 175毫米 x 435毫米
托架:两个内置3.5英寸托架;两个外置5.25英寸光驱托架
插槽:一个第3代PCIe x16;一个第2代PCIe x16(串接为x4)
高 x 宽 x 深:11.42英寸 x 3.65英寸 x 12.28英寸/290毫米 x 92.6毫米 x 312毫米
托架:一个内置3.5英寸托架(支持一个3.5英寸或两个2.5英寸驱动器);一个外置超薄光驱托架
插槽:一个第3代PCIe x16;一个开放式PCIe x4(串接为x4)
I/O端口
前面
2个USB 2.0端口
2个USB 3.0端口
1个麦克风接口
1个耳机接口
内部
1个USB 2.0端口(仅限MT)
2个SATA 6.0 Gb/秒端口
2个SATA 3.0 Gb/秒端口
后面
4个USB 2.0端口
2个USB 3.0端口
2个PS2端口
2个DisplayPort端口
1个VGA端口
1个RJ45端口
1个串行端口
1个音频输入/麦克风端口
1个音频输出端口
显示器兼容性
Dell UltraSharp系列(21.5英寸至30英寸):备受赞誉的高性能显示器,采用PremierColor技术(仅限部分机型)和超宽
视角;Dell Professional系列(17英寸至24英寸)。戴尔单显示器臂和双显示器支架。
键盘
戴尔智能卡键盘;戴尔商务多媒体键盘
鼠标
戴尔USB光电鼠标;戴尔6键USB激光鼠标
扬声器
提供戴尔2.0和2.1立体声扬声器系统;适用于部分液晶显示器的戴尔音棒
存储设备
微塔式机:最多可配两个3.5英寸或四个2.5英寸SATA硬盘
小型机:一个3.5英寸或两个2.5英寸SATA硬盘
两款机型:英特尔智能响应技术(SRT)5、英特尔快速启动技术(RST)5、智能连接技术(SCT)5以及部分硬盘:
SATA 6.0 Gb/秒7200 RPM
最高2.0 TB
SATA 6.0 Gb/秒10k RPM
最高500 GB
SATA 6.0 Gb/秒固态硬盘
最高256 GB
存储控制器
集成:英特尔快速存储技术,支持SATA 6 Gb/秒和基于主机的RAID 0/1/5/10
服务
有限硬件保修6,标准1年期远程诊断后上门服务7
可选:可选的Dell ProSupport和附带关键任务选项的Dell ProSupport可利用专家级技术人员、
全天候全球覆盖,以及针对任务关键型问题的同一工作日业务响应选项,提供高级支持服务8。
安全性
可信平台模块1.2 (TPM 1.2);防盗开关;设置/BIOS密码;I/O接口安全性;Kensington®锁插槽、
挂锁扣环、可锁电源;戴尔数据保护(DDP):DDP|安全性工具,适用于高级身份验证;DDP|
受保护工作区,面向恶意软件;DDP|加密,用于数据保护
法规
环保和法规标准
提供符合能源之星®5.2的配置,包括可选的获得80 PLUS®认证的金牌电源;获得EPEAT®认证
(请访问epeat.net,查看按国家/地区显示的具体认证等级/状态);中国CECP;GS标志。如需查看相关声明和认证的
完整列表,请参见戴尔法规与合规性主页(网址为dell.com/regulatory_compliance)英文
产品安全、EMC和环境数据表(英文版)
戴尔法规合规性主页(英文版)
戴尔和环境(英文版)
保修和支持服务
有限硬件保修6,标准1年期远程诊断后上门服务7
可选:可选的Dell ProSupport和附带关键任务选项的Dell ProSupport可利用专家级技术人员、全天候全球覆盖,以及针对任务关键型问题的同一工作日业务响应选项,提供高级支持服务8。
电源选项
Dell Precision T1700微塔式机(MT) Dell Precision T1700小型机(SFF)
365 W,能效为90 %(80 Plus®金牌认证);290 W,能效为65 % 255 W,能效为90 %(80 Plus®金牌认证);255 W,能效为65 %
