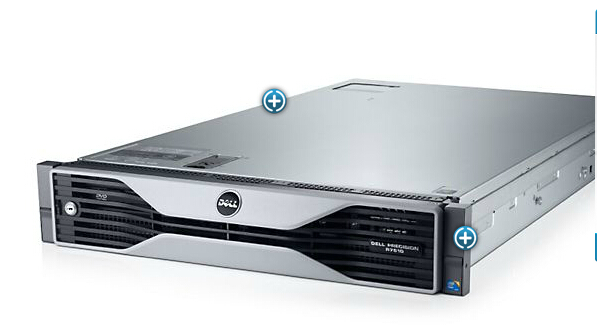

DELL Precision R7610
- 产品概述
- 规格参数
- 相关案例
Peak performance and increased security
Add a Dell Precision R7610 rack Workstation to your data center for exceptional performance and security. The Dell Precision R7610 keeps your valuable data in your data center at all times and allows secure access only through soft- or zero-client devices. This rack Workstation solution also reduces the potential liability of lost or damaged physical assets in the field.
Precision R7610工作站 - 巅峰性能和更高的安全性
最高可配两个12核英特尔®至强® E5-2600 V2系列处理器,能够胜任最繁重的工作。
支持Windows 7专业版或Windows 8专业版。
借助无身份、仅解码的客户机设备,提高客户机级别的安全性。
借助Dell Precision Optimizer,保持巅峰性能。该软件是世界首款自动化工作站性能工具,可提供自动性能优化、系统维护、跟踪和报告功能。
配备3个第3代PCIe x16 225 W双宽插槽,可支持超高端工作站级NVIDIA® Quadro、NVIDIA® Grid K2A或NVIDIA Tesla GPGPU卡 ,从而能够通过GPU通道在虚拟化环境中实现令人惊叹的显卡性能。
通过16个DIMM插槽(如果可用)获得高达512 GB1的RAM,可执行多任务处理工作。
Flexible deployment for 1:1 or virtualized environments
You’ll discover a great deal of deployment flexibility in the rack-based Dell Precision R7610.
For maximum performance, deploy it as a one-to-one Workstation solution using the optional Wyse P25 zero client device. This solution uses Teradici Tera 2 hardware-based compression and the PCoIP protocol for remote connectivity providing a superb, responsive Workstation experience.
For virtualized Citrix environments, you can extend your productivity and security benefits via GPU pass through for up to four users with Nvidia Quadro graphics cards or up to six users with the Nvidia Grid K2A solution.
Later this year, you can expect even greater scalability and ROI with one-to-many virtualized deployment capability.
Precision R7610 Workstation-Why a rack? Because your work demands it
Why a rack? Because your work demands it.
When the job calls for more security and flexibility than a standard tower or mobile Workstation can provide, the Dell™ Precision™ R7610 rack Workstation delivers.
For organizations where security is top priority, you need more than a lock and key. The Dell Precision R7610 can help safely house your intellectual property by keeping it contained in the data center.
Does your work involve inhospitable, hazardous or remote environments? The Dell Precision R7610 can provide Workstation-class performance remotely while your employees stay productive and comfortable at their own workspaces using the optional Dell Wyse P25 zero client.
For end users who work in space-constrained areas or temperature- or noise-sensitive environments, the Wyse P25 is small, cool and quiet.
Boost productivity and help improve ROI among offsite contractors, rotating workforces and geographically diverse employees with one-to-one remote access or one-to-six in a Citrix virtualized Workstation environment.
Precision R7610 Workstation-ISV certification
ISV certification
Independent Software Vendor (ISV) Certification is your peace of mind that the Dell Precision Workstations you purchase are capable of running the high-performance applications you rely on each day. ISV certification is the result of hundreds of engineering hours and rigorous testing that have been poured into Dell Precision Workstations to optimize performance with leading industry applications. ISV certifications include:
Autodesk® Maya®
Dassault Systèmes SolidWorks®
PTC® Creo®
And many more applications for engineering, architecture, oil and gas research and scientific analysis.
Smart design
The Dell Precision R7610 offers the same power and scalability found in our highest-performing tower Workstations with the convenience of a slim 2U design.
Precsion R7610 Workstation-Smart design
Preserve workspace with a 2U Workstation that easily resides in your data center.
Maintain uptime through optional redundant power supplies.
Obtain outstanding graphics and GPU compute performance through the capability to fit three double-wide, high-end graphics cards (or two multi-core compute (MCC) cards and one double-wide high-end graphics card) into a slim 2U chassis.
The integrated LSI SATA/SAS controller can support up to six 2.5” hard drives for maximum storage capability.
Memory you can count on
You keep working, no matter what challenges you face. Dell’s exclusive, patented Reliable Memory Technology Pro helps ensure that your Workstations will too. This new technology maximizes uptime by eliminating virtually all memory errors so the Workstations can become more reliable over time, providing a stable and reliable platform you can trust. RMT Pro works in conjunction with error-correcting code (ECC) memory to detect and isolate memory errors. With a simple system reboot, RMT isolates the defective area in memory essentially hiding it from the Workstation by marking it unusable.
Precision R7610 Workstation-Custom Factory Integration
Custom Factory Integration
Optional Custom Factory Integration (CFI) incorporates hardware, images, applications, peripherals and documents with your system as it’s being built to help simplify and accelerate deployment while improving hardware consistency and compatibility.
Precision R7610 Workstation-Dell ProSupport
Dell ProSupport
Choose Dell’s premium support service, ProSupport2, for 24/7 direct telephone access to technicians. Whether you have one office or hundreds around the world, protect your investments with this simple yet flexible approach.
Precision R7610 Workstation-Collaborative Support
Collaborative Support
ProSupport’s Collaborative Support feature provides assistance even if you have a problem with non-Dell hardware or software. We will leverage our relationships with over 75 top third-party vendors to act as your single point of contact to help resolve your issue.
处理器选项Help Me Choose
英特尔® XEON_12 (E5-2697)
英特尔® XEON_10 (E5-2680, E5-2670)
英特尔® XEON_8 (E5-2687W, E5-2680, E5-2650, E5-2665)
英特尔® 至强®六核 (E5-2667, E5-2630, E5-2620)
英特尔® 至强®四核 (E5-2637, E5-2643, E5-2609, E5-2603)
操作系统选项Help Me Choose
Windows® 7 专业版 32 位 (英文)
Windows® 7 专业版 32 位 (简体中文)
Windows® 7 专业版 64 位 (英文)
Windows® 7 专业版 64 位 (简体中文)
Windows 8.1 Pro (64位) 英文
Windows 8.1 Pro (64位) 简体中文
Red Hat Linux 企业版 6.4 英文 1年 RHN
Red Hat Linux 企业版 6.4 英文 3年 RHN
Red Hat Linux 企业版 6.4 英文 5年 RHN
Ubuntu Linux 12.04
芯片组选项
英特尔C602
内存选项3Help Me Choose
8GB (2x4GB) 1866MHz DDR3 ECC RDIMM
64GB (8x8GB) 1600MHz DDR3 ECC RDIMM
32GB (4x8GB) 1600MHz DDR3 ECC RDIMM
128GB (16x8GB) 1600MHz DDR3 ECC RDIMM
128GB (8x16GB) 1600MHz DDR3 ECC RDIMM
192GB (8x16GB + 8x8GB) 1600MHz DDR3 ECC RDIMM
256GB (16x16GB) 1600MHz DDR3 ECC RDIMM
16GB (4x4GB) 1866MHz DDR3 ECC RDIMM
32GB (4x8GB) 1866MHz DDR3 ECC RDIMM
32GB (8x4GB) 1866MHz DDR3 ECC RDIMM
64GB (8x8GB) 1866MHz DDR3 ECC RDIMM
128GB (8x16GB) 1866MHz DDR3 ECC RDIMM
128GB (16x8GB) 1866MHz DDR3 ECC RDIMM
192GB (8x16GB + 8x8GB) 1866MHz DDR3 ECC RDIMM
256GB (16x16GB) 1866MHz DDR3 ECC RDIMM
16GB (4x4GB) 1600MHz DDR3 ECC RDIMM
32GB (8x4GB) 1600MHz DDR3 ECC RDIMM
256GB (8x32GB) 1866MHz DDR3 ECC LRDIMM
512GB (16x32GB) 1866MHz DDR3 ECC LRDIMM
显卡选项
支持最多四个4PCI Express® x16第2代或第3代显卡,总功率最高675 W(相关限制条件在此适用4):
高端3D
NVIDIA® Quadro® K6000
NVIDIA® Quadro® K5000
NVIDIA® Grid™ K2A
中端3D
AMD FirePro™ W5000
NVIDIA Quadro K4000
NVIDIA Quadro K2000
入门级3D
NVIDIA Quadro K600
专业级2D(未经ISV认证)
AMD FirePro 2270
NVIDIA Quadro NVS™ 510
NVIDIA Quadro NVS 310
GPU
一个或两个NVIDIA Tesla® K20C GPGPU4 - 支持Nvidia Maximus™技术
虚拟化
在配备经过认证的虚拟机管理程序的部分配置上,可通过GPU通道,为最多四名用户实现工作站虚拟化
硬盘选项Help Me Choose
最高1000 GB SATA硬盘 (7200RPM)
最高900 GB 串行连接SCSI硬盘 (10000RPM)
最高600 GB 串行连接SCSI硬盘 (15000RPM)
最高512 GB SATA 固态硬盘硬盘
光驱选项
托架式选项:DVD-ROM;DVD+/-RW
通信选项
集成:英特尔82579千兆位以太网控制器,支持远程唤醒、PXE和巨型帧
可选:英特尔以太网服务器适配器X520-T2 10 GbE(PCIe卡)
远程访问
可选的Tera2双显示器PCoIP™ PCIe远程访问主机卡
声卡选项
集成Realtek ALC269Q高保真音频
端口、插槽和机箱包含项
前面
2个USB 2.0端口
1个系统ID按钮/LED
内部
1个USB 2.0端口
后面
4个USB 2.0端口
2个USB 3.0端口(可选的PCIe卡)
1个音频输出端口
1个音频输入端口
1个串行端口
2个RJ45端口
1个系统ID按钮/LED
2U机架式机箱
高 x 宽 x 深:3.40英寸 x 17.35英寸 x 29.67英寸(31.21英寸,带挡板);86.3毫米 x 440.6毫米 x 753.6毫米(792.7毫米,带挡板)
托架:六个外置2.5英寸托架;一个外置5.25英寸超薄光驱托架
插槽:最高可配五个第3代PCIe全长、全高插槽;一个第2代PCIe x8(串接为x4)半高主板插槽
• 外部Riser卡:两个第3代PCIe x16(一个为双倍宽度)、一个第3代PCIe x16(串接为x4)
• 中央Riser卡(选择下列选项之一):
- 一个第3代PCIe x16、一个第3代PCIe x16(串接为x8)(默认Riser选项;需要使用第2个CPU,以启用这些插槽)
- 一个第3代PCIe x16(需要使用第2个CPU,以启用此插槽)、一个传统32位PCI
电源选项:一个或两个冗余、热插拔、能效为90 %的电源,功率为1100 W或1400 W (220 V)
外围设备
显示器
Dell UltraSharp系列(21.5英寸至30英寸):备受赞誉的高性能显示器,采用PremierColor技术(仅限部分机型)和超宽视角; Dell Professional系列(17英寸至24英寸)。
键盘
戴尔智能卡键盘、戴尔商务多媒体键盘。
鼠标
戴尔USB光电鼠标、戴尔USB六键激光鼠标。
扬声器
提供戴尔2.0和2.1立体声扬声器系统;适用于部分液晶显示器的戴尔音棒。
音频
集成Realtek ALC269Q高保真音频
存储设备
• 最多六个2.5英寸SATA或SAS硬盘 - 英特尔CAS-W - Caching Acceleration Software for Workstations:需要128 GB固态硬盘 + 标准存储容量硬盘
SATA 7200RPM
最高1.0 TB
SAS 10K RPM
最高900 GB
SAS 15K RPM
146 GB(300 GB即将推出)
固态硬盘
最高512 GB
• 350 GB PCIe固态硬盘(非可引导设备)
存储控制器
集成:LSI 2308 6 Gb/秒SATA、SAS控制器,支持基于主机的(软件)RAID 0、1、10 可选:LSI 8271-8i 6 Gb/秒的SATA、SAS硬件RAID控制器,带1 GB板载高速缓存,支持RAID 0、1、5、10
服务
基础:3年期有限硬件保修8,含3年期标准远程诊断后上门服务5
推荐:Dell ProSupport3旨在快速响应您的业务需求,帮助保护您的投资
和敏感数据,并提供增强的前瞻性支持服务,从而降低IT环境中的风险
和复杂性
安全性
防盗开关;设置/BIOS密码;I/O接口安全性;Kensington®
锁插槽、挂锁扣环、内置挡板锁;可锁电源;戴尔数据保护(DDP):DDP|安全性工具,适用于高级
身份验证;DDP|受保护工作区,面向恶意软件;DDP|加密,用于数据保护
法规
产品安全、EMC和环境数据表(英文版)
戴尔法规合规性主页(英文版)
戴尔和环境(英文版)
环境参数
环保标准(生态标签)包括:中国 - RoHS、CEC;欧盟 - RoHS、WEEE;德国 - GS Mark;韩国
- RoHS;日本 - RoHS、能源法。有关声明和认证的完整列表,请参见戴尔法规与
合规性主页(网址为dell.com/regulatory_compliance)
